F225XCB

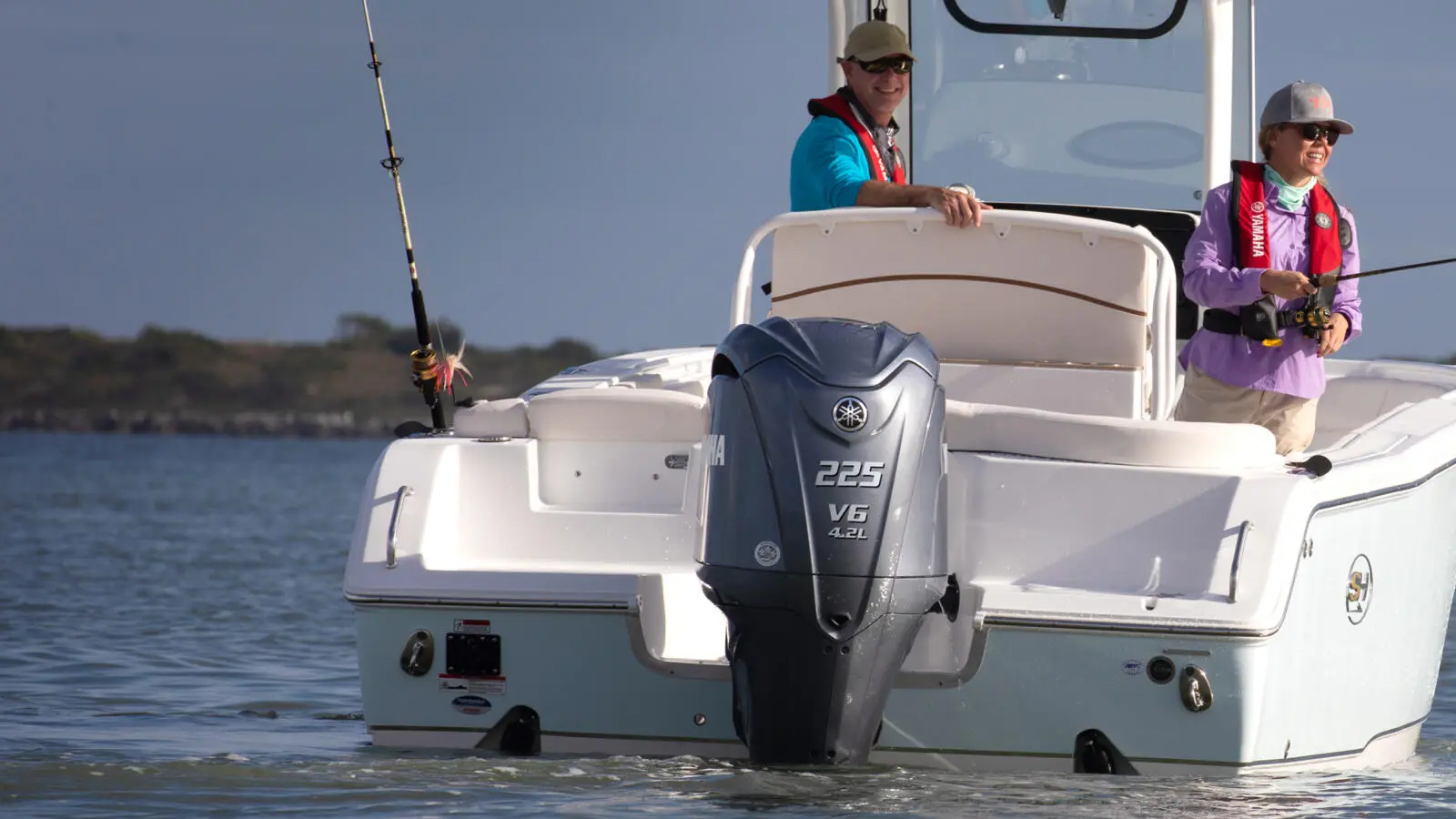

The Yamaha F225XCB is a 4-stroke outboard engine with 225 hp, DOHC, VCT and EFI. Weighing around 263 kg and with a shaft length of 643 mm, it delivers powerful performance for a wide range of boat types. Electric start and electro-hydraulic steering enable comfortable and precise handling on the water.
30.905,00 €
All prices include the statutory VAT of currently 19% and do not include freight costs. These are scaled as follows: Super Jet = € 249.00 and all other models € 329.00. The prices are per piece. You can find out the binding final price - including any dealer-related additional costs - from your authorized Yamaha dealer.
Motor type
4-stroke, DOHC, 24 valves, VCT, 60° V6
Max speed
5,000 - 6,000 rpm
Bore x stroke
96.0 mm × 96.0 mm
Dry weight
263 kg
Displacement
4,169 cm³
Tank capacity
External tank required (not included in the scope of delivery)
Translation
1.75
Control system
Drive-by-Wire Fernsteuerung mit integrierter hydraulischer Lenkung
Kraftvoll, effizient & modern
Der Yamaha F225XCB ist ein leistungsstarker 225-PS-Außenborder mit Drive-by-Wire-Steuerung, EFI-System und variabler Nockenwellensteuerung (VCT). Der 4,2-Liter-V6-Motor sorgt für dynamische Beschleunigung, hohe Endgeschwindigkeit und kraftstoffsparenden Betrieb.
Dank digitaler Fernsteuerung lässt sich der Motor präzise und komfortabel bedienen. Power Trim & Tilt erleichtert das Anpassen an verschiedene Fahrbedingungen, während der elektrische Start jederzeit zuverlässiges Anlassen gewährleistet. Die solide Konstruktion, ruhiger Lauf und das wartungsfreundliche Design machen den F225XCB zur idealen Wahl für ambitionierte Skipper.
Mit 643 mm Schaftlänge und ca. 263 kg Gewicht bietet er eine perfekte Balance aus Leistung, Kontrolle und Vielseitigkeit.
Simple, clean setup with Yamaha's DES system
The 225 hp V6 engine is fully compatible with Yamaha's optional Digital Electric Steering (DES) system. The DES system ensures a tidy boat deck - without hydraulic pumps, hoses, control units, fluids or special bleed connections. It also enables technicians to carry out new installations much more quickly and easily during servicing.
Quick raising and lowering at the touch of a button
Yamaha's exclusive TotalTilt™ feature allows the engine to be fully raised or lowered - all the way to the trim cylinder - with a simple double-click of the corresponding tilt button. During the process, an audible signal sounds to alert the crew and ensure free movement at the stern. An integrated tilt limiter also protects against unintentional damage.
More control when reversing and at low speed
The TERE system (Thrust Enhancing Reverse Exhaust) ensures that the exhaust bubbles are kept above the anti-ventilation plates - away from the propeller - when reversing below 2500 rpm. As a result, the propeller only grabs clear water, which enables significantly stronger reverse thrust and precise maneuverability. Combined with the optional digital steering system and Helm Master EX joystick, it offers maximum benefit in tight areas and when docking.
Optics in the style of the XTO - redesigned down to the last detail
Inspired by the design of the larger XTO model, this outboard motor features a color-coordinated lower unit, a new one-piece upper engine cover with integrated water drain channel, a reshaped lower cover and high-quality graphics. The impressive new look perfectly complements the proven performance and is an ideal match for a wide range of premium boats.
Smoother ride due to reduced vibrations
Adopted from the flagship XTO model, the lower engine mounts are larger and softer. This significantly reduces vibrations and makes the riding experience noticeably quieter and more pleasant.
More durability and optimized power transmission
The new 4.2-liter V6 engine with 225 hp has a revised underwater section with new components and design features. The redesigned tooth profile of the gearwheels improves contact and reduces surface pressure. In addition, optimized oil routing in the lower area and on the gears ensures greater resilience and a longer service life.
